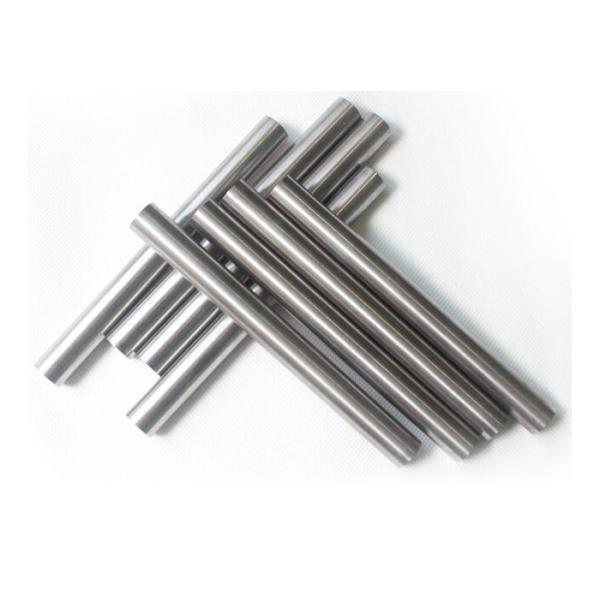

High Polished Solid Tungsten Carbide Rod With Excellent Wear Resistance

Brand Name : Zhuzhou Jintai Cemented Carbide

Model Number : Various

Place of Origin : Hunan, China

MOQ : 1 - 1000 Kilograms, sample order acceptable

Price : Negotiable, depends on carbide grade and quantity.

Supply Ability : 300 Ton/Tons per Month

Packaging Details : Pack with shock resistance foam first in plastic box, and then carton boxes outside. Or pack according to your request

Delivery Time : 7-25 days, depends on quantity

Certification : ISO certificated

Payment Terms : Western Union, L/C, T/T

Product name : Tungsten Carbide Rod

Alloy Specification : YG6X/YG8/YL10.2 ETC...

Particle : 0.2-1.7um

Material : 100% virgin carbide material

Surface : High Polished

Advantage : High density, Excellent Wear Resistance

Contact Now

Tungsten carbide, also known as carbide, is an extremely hard alloy made from tungsten and carbon that offers high wear resistance as well as good corrosion resistance.
Tungsten has good thermal conductivity and lowest thermal expansion of any pure metal. Its corrosion resistance is excellent and it can be attacked only slightly by most mineral acids. Our Tungsten products are widely used in aviation, aerospace, nuclear high-temperature furnace, glass, ceramic, crystal production, medical, illumination and vacuum sputtering etc.
Features
  • 100% virgin raw material of WC+CO
  • ISO standard
  • Excellent wear resistance & high toughness
  • Have very good thermal & chemical stability
  • Anti-deformation & deflection
  • Customized order is welcomed.
  • Applicable in make the drill bits, end-mills, reamers, automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, it can be used for making of cemented carbide stamping head, Core bar and perforatioin tools.
High Polished Solid Tungsten Carbide Rod With Excellent Wear Resistance

Grade Specification

Grade ISO Grade CO % Densty g/cm3 Hardness HRA(HV) TRS Mpa
JT06F K05 K10 6.0 14.9 93.1 3800
YL10.2 K20 K30 10.0 14.5 91.5 4000
JT12F K30 K40 12.0 14.2 92 4000
JT06U K05 K10 6.0 14.8 93.5 3200
JT15X K30 K40 15 13.8 87.5 3600

~ Customized Tungsten carbide products are available!

High Polished Solid Tungsten Carbide Rod With Excellent Wear Resistance

Type D(mm) Tol. Of diameter(mm) L(mm) Tol. Of diameter(mm)
￠1.0*330 1.0 +0.2~+0.45 330 0~+5.0
￠2.0*330 2.0 +0.2~+0.45 330 0~+5.0
￠3.0*330 3.0 +0.2~+0.45 330 0~+5.0
￠4.0*330 4.0 +0.2~+0.45 330 0~+5.0
￠5.0*330 5.0 +0.2~+0.45 330 0~+5.0
￠6.0*330 6.0 +0.2~+0.45 330 0~+5.0
￠7.0*330 7.0 +0.2~+0.45 330 0~+5.0
￠8.0*330 8.0 +0.2~+0.45 330 0~+5.0
￠9.0*330 9.0 +0.2~+0.45 330 0~+5.0
￠10.0*330 10.0 +0.2~+0.5 330 0~+5.0
￠11.0*330 11.0 +0.2~+0.5 330 0~+5.0
￠12.0*330 12.0 +0.2~+0.5 330 0~+5.0
￠13.0*330 13.0 +0.2~+0.5 330 0~+5.0
￠14.0*330 14.0 +0.2~+0.5 330 0~+5.0
￠15.0*330 15.0 +0.2~+0.6 330 0~+5.0
￠16.0*330 16.0 +0.2~+0.6 330 0~+5.0
￠17.0*330 17.0 +0.2~+0.6 330 0~+5.0
￠18.0*330 18.0 +0.2~+0.6 330 0~+5.0
￠19.0*330 19.0 +0.2~+0.6 330 0~+5.0
￠20.0*330 20.0 +0.2~+0.7 330 0~+5.0
￠21.0*330 21.0 +0.2~+0.7 330 0~+5.0
￠22.0*330 22.0 +0.2~+0.7 330 0~+5.0
￠23.0*330 23.0 +0.2~+0.7 330 0~+5.0
￠24.0*330 24.0 +0.2~+0.7 330 0~+5.0
￠25.0*330 25.0 +0.2~+0.7 330 0~+5.0
￠26.0*330 26.0 +0.2~+0.8 330 0~+5.0
￠27.0*330 27.0 +0.2~+0.8 330 0~+5.0
￠28.0*330 28.0 +0.2~+0.8 330 0~+5.0
￠29.0*330 29.0 +0.2~+0.8 330 0~+5.0
￠30.0*330 30.0 +0.2~+0.8 330 0~+5.0
High Polished Solid Tungsten Carbide Rod With Excellent Wear Resistance

High Polished Solid Tungsten Carbide Rod With Excellent Wear Resistance

High Polished Solid Tungsten Carbide Rod With Excellent Wear Resistance
